Plan a new garage door around the finished opening, interior clearances, property layout and how the garage will actually be used. Then narrow the compatible door construction, insulation, tracks, windows, finish and opener.
In Coquitlam, hillside properties, new residential projects and changing housing forms can create different driveway, threshold, access and ceiling-layout conditions. The installation should follow the actual garage rather than a neighbourhood assumption.
Confirm the finished opening width and height plus the usable sideroom, headroom and backroom. Then identify ceiling obstructions, track requirements, spring configuration, opener space, threshold conditions and project constraints before selecting the final door.
The difference matters. Installation planning begins while the garage-door system or opening is still being designed. Replacement begins with an existing door and established opening.
This is the stronger route when the new garage door needs to be coordinated with construction, framing, ceiling space or a substantial renovation.
If the main job is removing an existing garage door and fitting a new system into the established opening, replacement is the more precise service path.
A garage door also needs usable space for its tracks, spring system and powered operator. Measure the actual finished conditions rather than relying only on a nominal door size or an early construction drawing.
Confirm the finished width between the completed jamb surfaces before final door selection.
Measure the finished vertical opening rather than assuming the rough framing dimension remains unchanged after finishes.
Check usable space beside both sides of the opening for the compatible tracks, brackets and spring arrangement.
Measure from the top of the finished opening to the ceiling or first obstruction so the appropriate track and spring configuration can be selected.
Confirm unobstructed garage depth for horizontal tracks and the intended opener arrangement.
Identify beams, lights, pipes, ducts, ceiling storage and other equipment that could conflict with door travel or the operator.
Coquitlam includes sloped properties, established homes, new construction and a growing mix of small-scale residential forms. Use those conditions to plan access and fit—not as shortcuts for choosing the garage door.
On sloped sites, note vehicle approach, working access, finished floor level and where runoff moves around the garage entrance.
Existing garages can have framing, ceiling heights and interior obstructions that differ from a current standard layout. The installed conditions should drive the plan.
During new construction, preserving track, spring and opener clearances early can reduce conflicts with lighting, mechanical systems and overhead storage later.
On strata or managed properties, confirm who controls the garage-door exterior and what approvals are required before a materially different system is ordered.
Material, insulation, windows, panel design and finish should follow the garage use and exterior goals rather than being selected independently from the installation.
Compare Steel vs Wood Garage Doors Custom Home Garage Door PlanningCompare compatible door constructions around appearance, durability expectations, upkeep and how the garage is used.
Give insulation more weight where the garage is attached, conditioned, regularly occupied or affects comfort in nearby spaces.
Traditional, carriage-inspired and contemporary doors place different visual emphasis on the garage frontage.
Glazing affects daylight, privacy and exterior appearance. Available layouts depend on the selected garage-door system.
Compare the door with siding, trim, masonry, roofline and other major exterior finishes rather than choosing colour in isolation.
Include compatible bottom and perimeter weatherstripping in the complete installation plan.
Track configuration should be chosen around the available overhead environment. Limited headroom, storage, structural beams or mechanical equipment can all change the practical layout.
A conventional track configuration can work when the selected door has the required headroom, sideroom and garage depth.
Where overhead clearance is restricted, determine whether a compatible low-headroom system is appropriate instead of forcing a standard arrangement.
Shelving and racks should stay clear of the space needed by the door, horizontal tracks and opener.
Coordinate beams, ductwork, pipes, lights and other equipment before those components occupy the space required by the door system.
Plan opener space with the tracks instead of solving the door first and discovering an operator conflict after installation.
A new door does not determine one universal opener. The operator needs to suit the installed door and the available ceiling or wall configuration.
Match the operator to the selected door's size, construction and operating requirements.
Conventional rail-style openers require clear overhead space that should be coordinated with tracks and storage.
If occupied rooms are close to the garage, operating noise can be given greater weight when comparing compatible opener configurations.
Connected controls, lighting, backup power and related functions depend on the particular opener model rather than the door alone.
A garage door can be one element of a larger construction project. Keep the product installation separate from structural work, permitting and property approvals that may also apply.
Coordinate the garage-door opening, ceiling space, electrical work, lighting and mechanical systems while framing and finishes can still be adjusted.
Home Builders & RenovatorsDetermine who controls the garage door and whether exterior appearance or written approval requirements apply before finalizing a materially different door.
Strata & Condo Garage DoorsCreating, widening or raising the garage opening changes the building itself and should be treated as a broader construction scope rather than ordinary garage-door installation.

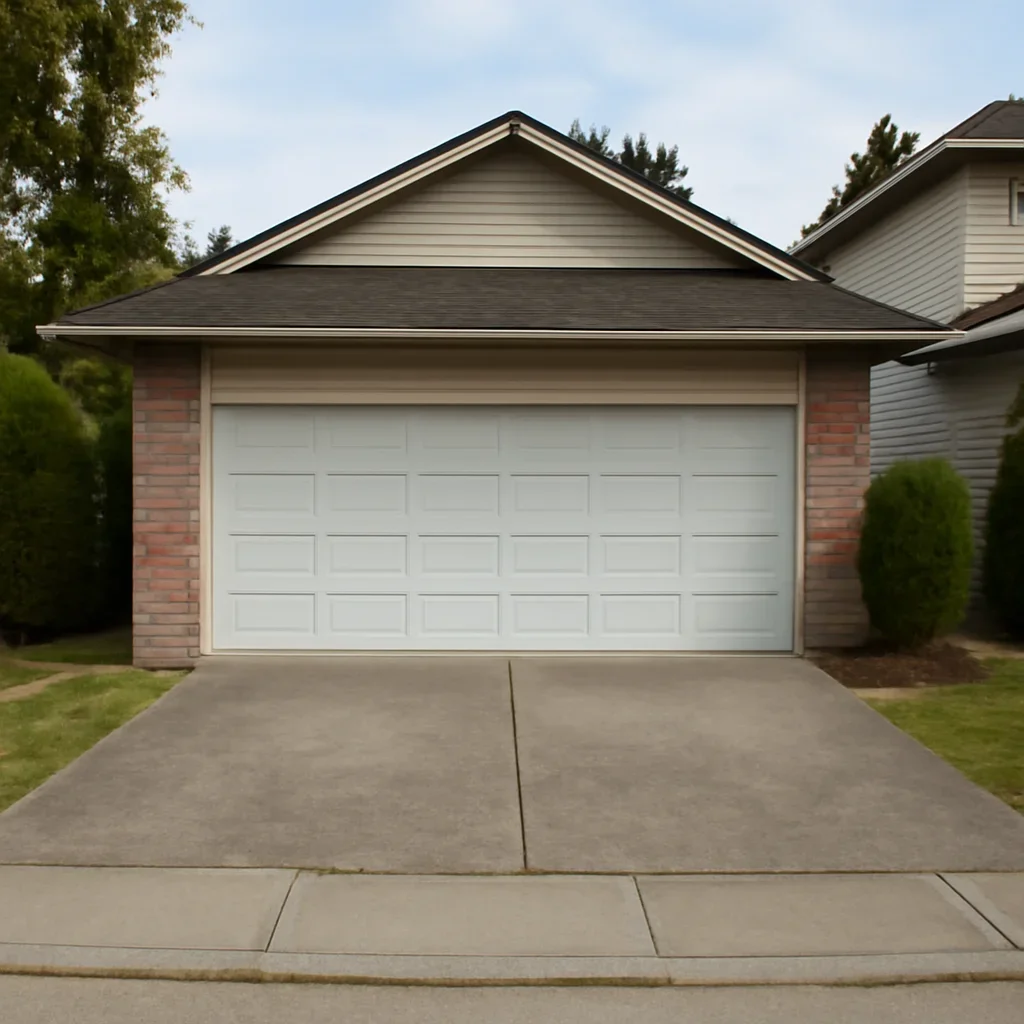

On relevant Coquitlam properties, grade and rainwater movement can influence vehicle approach, installation access and what happens where the closed door meets the floor. They should not be confused with the garage door's internal track geometry.
Note steep or unusual approach conditions when they affect vehicle clearance, installation access or the relationship between driveway and garage floor.
Inspect the finished floor where the bottom seal meets the garage opening and identify uneven surfaces or recurring debris.
Select compatible weatherstripping to close ordinary gaps between the installed garage door and finished floor.
If rainwater is repeatedly directed toward the garage, treat the underlying drainage or grading condition as a separate property issue.
Retaining walls, narrow approaches, landscaping or parked vehicles can matter to installation logistics on some properties.
Establish what the garage can accommodate before narrowing design options and powered-operation features.
Confirm finished width, height, sideroom, headroom, backroom and relevant interior obstructions.
Identify project type, driveway and threshold conditions, site access and relevant property requirements.
Narrow compatible construction, insulation, windows, finish, track setup, springs and sealing.
Confirm the intended operator and required ceiling, electrical and control arrangements where applicable.
Install the specified system and review normal travel, clearances, sealing and relevant opener operation.
Pricing depends on the selected door and the conditions required to install it. Compare the complete scope rather than one advertised door price.
Opening size and configuration affect the door, spring system, tracks and compatible hardware.
Door material, layer construction, insulation and finish affect the selected product.
Glazing, panel design and other compatible visual options can change the final specification.
Limited headroom or other unusual garage conditions can require a different compatible track arrangement.
A new automatic operator is a separate product and installation decision when part of the project.
Structural opening work, electrical changes or other building preparation should be treated as separate project scope where applicable.
Direct answers to the questions worth resolving before the new door is ordered.
Confirm the finished opening width and height plus usable sideroom, headroom and backroom. Also identify beams, lights, ductwork, pipes, storage and other obstructions. Exact requirements depend on the selected door, track, spring and opener configuration.
Sometimes. Compatible low-headroom track systems exist for certain installations. Measure the actual available space and select the door and track configuration together rather than assuming a standard layout will fit.
It can affect vehicle approach, service access, threshold conditions and runoff around the opening. It does not by itself determine how the garage door travels through its interior tracks.
It depends on the garage. Insulation usually deserves greater consideration where the garage is attached, conditioned, regularly occupied or directly affects comfort in neighbouring spaces.
Not automatically. An existing opener may remain appropriate when its condition and configuration suit the new garage door. If a new operator is part of the project, see garage door opener installation.
Approval depends on the property, responsibility for the garage door and the applicable strata rules or bylaws. Confirm those requirements before ordering a materially different exterior door. See strata and condo garage-door guidance.
Yes. Installing a garage door into a prepared opening is different from creating, widening or raising that opening. Structural changes become part of a larger building project and applicable City requirements should be confirmed before construction.
Share the property and project type, approximate opening dimensions if available, interior and exterior garage photos, known ceiling obstructions, design and insulation priorities, and any strata or construction requirements already identified.
Send opening measurements if available, photos of the garage interior and exterior, your project type and what you want from the finished door. Those details provide a stronger starting point for narrowing compatible options.
